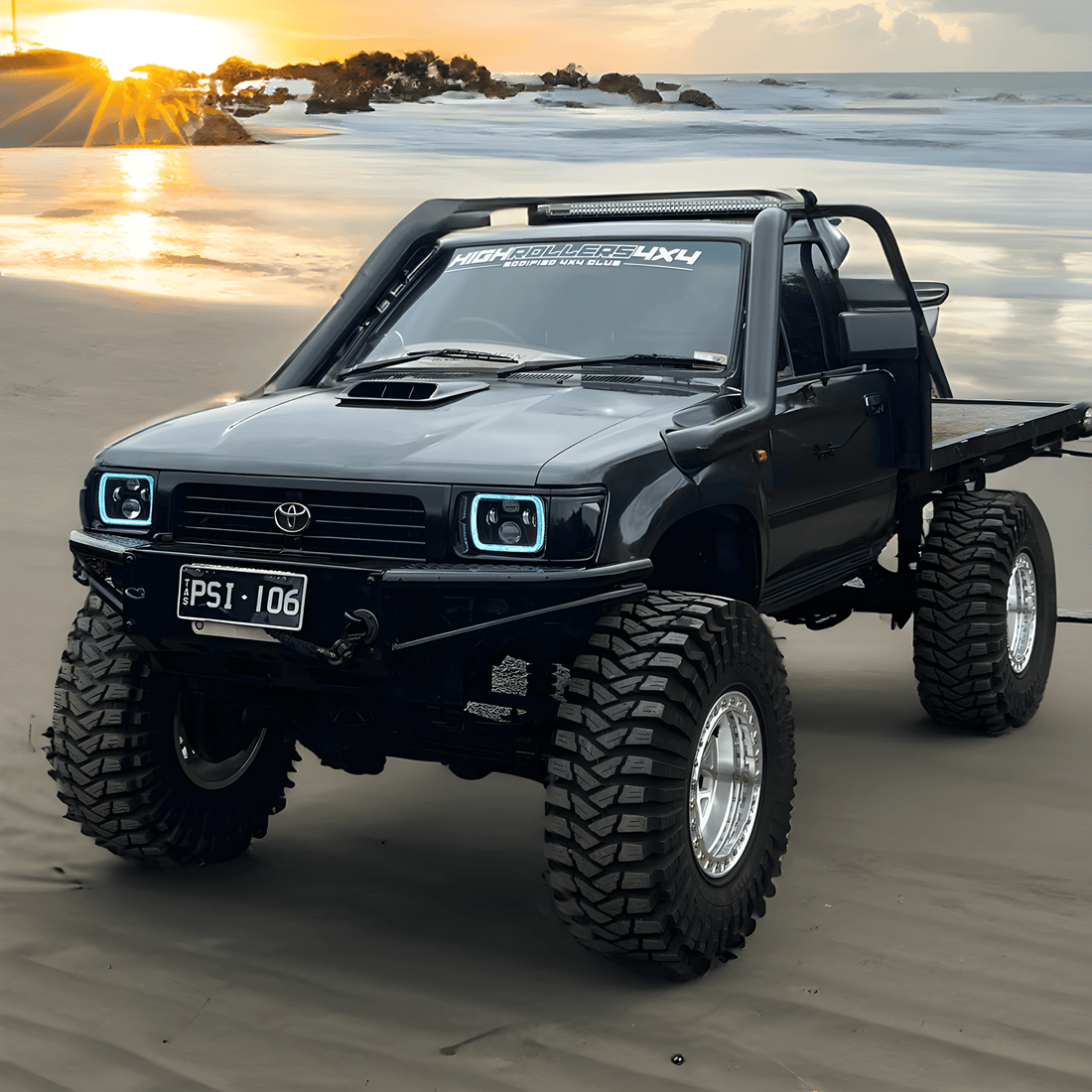

5X7" Halo Headlight Installation Guide

Important Notes

Professional installation recommended.
Test headlights and wiring prior to installation.

Overview:

Our Bushdoof 5x7" Headlights are designed for straightforward installation, featuring a single controller with inputs for park lights, indicators, and power. Follow this guide to seamlessly upgrade your vehicle lighting.

What you'll need:

• Phillips screwdriver
• Trim removal tools (if required)
• Socket set
• Electrical tape
• Zip ties
• Multimeter (optional)
• Vehicle manual (for reference)
• Longer screws (may be required for headlight fitment)

Step 1: Remove Factory Headlights

• Check packaging contents, you should have:
  - 2x Bushdoof Headlights
  - 2x CANBUS Modules
  - 1x Bushdoof Controller
  - Extension wires
• Remove grille, bullbar, or panels as needed for headlight removal.
• Carefully unbolt factory headlights, being gentle with the surrounds as they will be reused.
• Disconnect stock headlight wiring plugs.
• Ensure no damage to factory mounts or trims.

Step 2: Prepare & Route Wiring

• Mount the supplied controller securely, preferably behind the grille or near the radiator support.
• Run the controller wires to each Headlight, taking note of the left/right labels
• Connect CANBUS Modules to Factory H4 plugs.
• Tap into the factory park light (positive wire) and left/right indicators (positive wires).
• Run a fused power supply to the controller – connect to battery, ignition, or auxiliary switch depending on how you'd like them setup
• Use a 7.5Ah fuse on power input for safety.
• Secure wiring neatly using zip ties and avoid heat sources or sharp edges.
• Refer to wiring diagram below for wiring details.

Step 3: Install Bushdoof 5x7" Headlights

• Plug Headlights into the Bushdoof Controller and to the H4 CANBUS module
• Test all wiring connections and ensure lights are functioning before final fitment.
• Position headlights carefully into factory surrounds – due to slightly thicker build, longer screws may be needed on some vehicles.
• Secure headlights using factory mounts and screws (replace with longer screws if necessary).
• Adjust beam alignment: facing a wall 5-10 meters away, check low and high beam height.
• Use adjustment screws to level beams to prevent blinding oncoming traffic and ensuring good visibility.
• Reinstall grille, bullbar, and any panels removed earlier.

Step 4: Test & Configure

• Turn on vehicle and check all headlight functions – low beam, high beam, indicators, park lights.
• Ensure everything is working and all connections are properly secured and insulated.
• Download the Bluetooth control app below, pair your device, and configure desired colours or settings.

  Please see below for installation video which is the same as the 5x7 Angry Eyes!
  https://www.youtube.com/shorts/wwaHcYdODSI


Wiring Diagram:

Tech Specs:

Downloads:

• Bushdoof Control App (iOS)
• Bushdoof Control App (Android)

• Troubleshooting Guides
