CX6™ RGBW Rock Lights Installation Guide
Important Notes
Professional installation recommended.
Test rock lights and wiring prior to installation.
Overview:

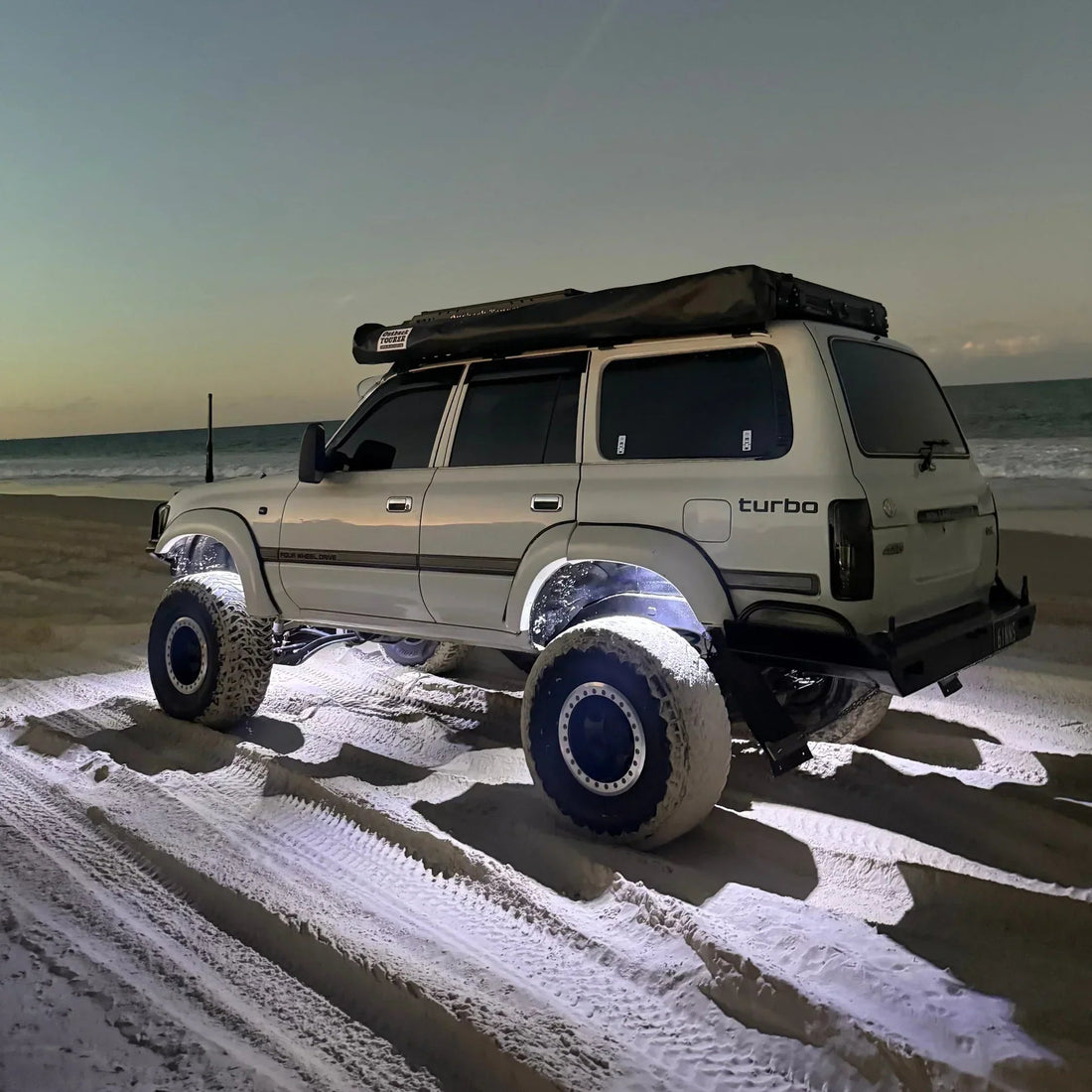

Our Bushdoof CX6™ RGBW Rock Lights are engineered to be the brightest and smallest RGBW rock light in its class, it delivers uncompromising output from an ultra-compact housing designed for clean, precision installs. With six high-performance LED chips working together inside each unit. Built with genuine Cree LED Technology, every CX6™ features 3 dedicated Pure White Chips and 3 RGBW Chips. This means when you have white selected, a total of 6 LEDs will illuminate in each unit to deliver an ultra bright pure white light that is not diluted through colour mixing.
Follow this guide to properly set up, wire, and mount your kit.
What you'll need:
- Drill with 4mm drill bit
- Trim removal tools (if required)
- Phillips screwdriver
- Socket set
- Electrical tape
- Zip ties
- Multimeter (optional)
- Soldering iron or crimp tool
- Vehicle manual (for reference)
- Silicone sealant (optional for waterproofing)
Step 1: Test Lights & Orientation
- Lay out all rock lights and controllers on a clean surface.
- Plug in the controller and test all rock lights to ensure functionality.
- Confirm chasing effect direction during testing and note positions before mounting.
Step 2: Install Controller & Wiring
- Mount the RGBW controller in a secure, accessible location (e.g., engine bay or cabin).
- Measure and run extension wires through the vehicle, ensuring each light can reach its mounting position.
- Extend red (positive) and black (negative) wires if needed.
- Connect controller to a 12V power source via switch or direct to battery.
- Install a 5Ah fuse on the positive wire for safety.
- Secure wiring neatly with zip ties, keeping away from sharp edges and heat sources.
Step 3: Mount Rock Lights
- Use the supplied rubber mounting brackets as templates.
- Drill mounting holes with a 4mm drill bit.
- Bolt each rock light with rubber backing to wheel arches or underbody using provided hardware.
- Power up the system once more before final tightening to confirm chasing direction is correct.
- Adjust if necessary before fully securing each light.
Step 4: Final Test & Configuration
- Confirm all lights function properly.
- Open the Bluetooth app and connect to the RGBW controller.
- Rename the controller to easily identify it.
- Group it with other Bushdoof products to sync effects.
Wiring Diagram:
